AfterVLX 138 Panoramic Sliding Door in Miami, FL | TruePane Windows & Doors
The VLX 138 Panoramic Sliding Door is a luxury large-span aluminum slider built for one thing: uninterrupted glass. We install this door across Miami, FL for homeowners who want a wall that opens, not a door that slides. Think 20 feet of glass gliding on stainless bearings with almost no effort. As an authorized ViewLux installation partner, TruePane Windows & Doors handles everything from measurement to final inspection, so your warranty stays intact and the door performs the way it was engineered to. Call (754) 238-2201 to talk specs, pricing, or a free on-site measurement.
Product Overview - VLX 138 Panoramic Sliding Door

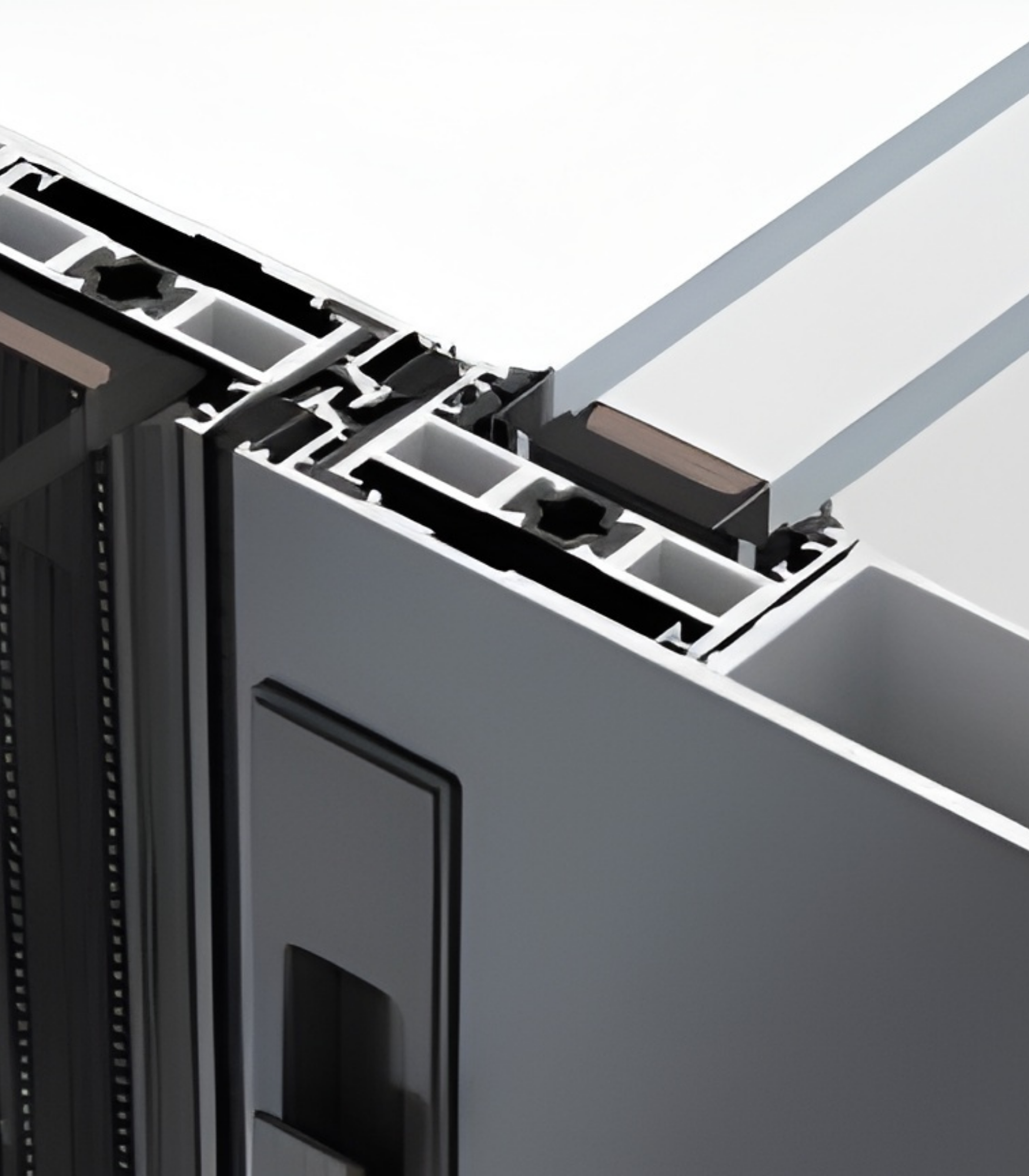

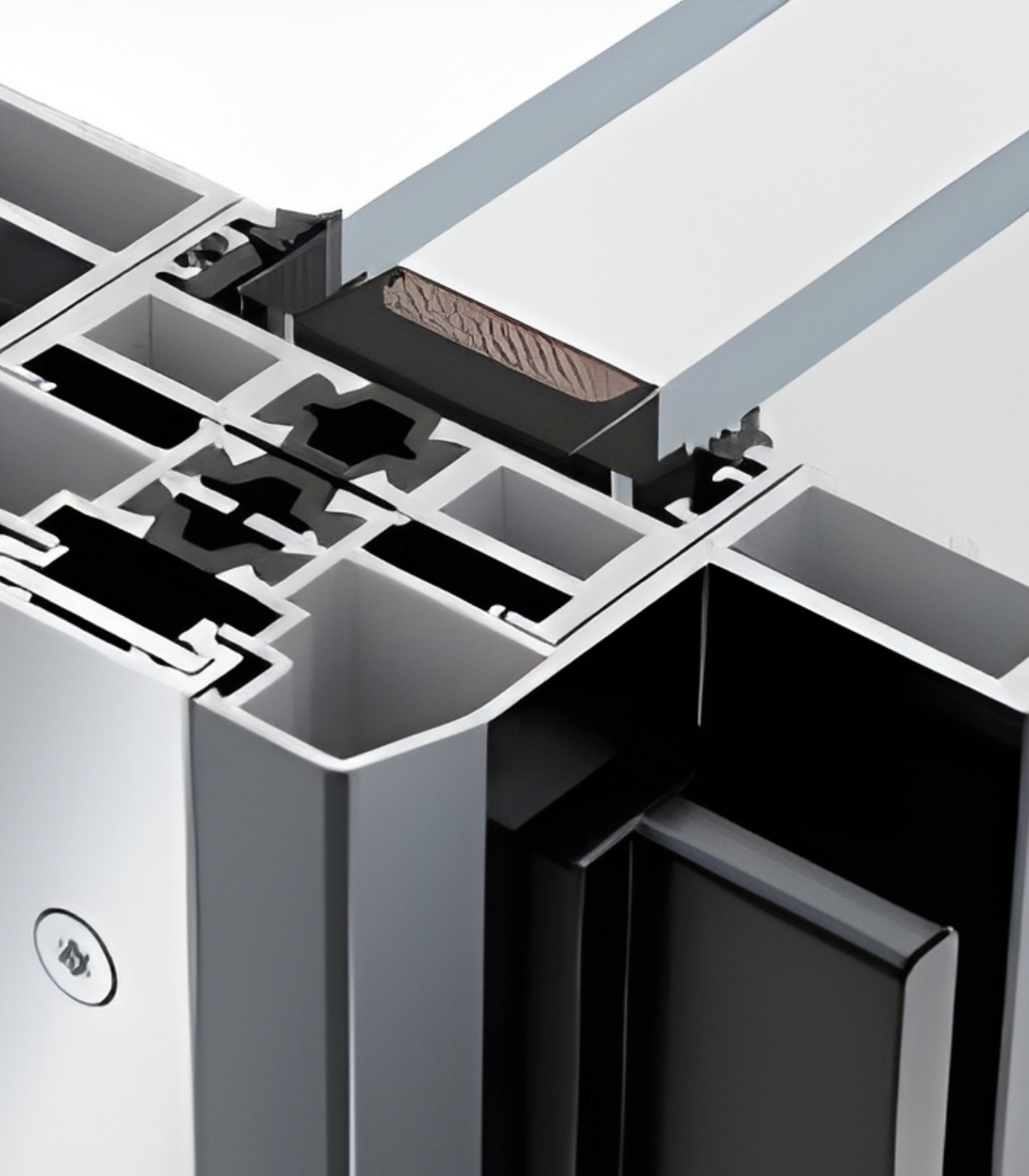

The VLX 138 gets its name from its wall thickness: 0.138 inches of extruded aluminum. That’s a meaningful number in the sliding door world. Thinner walls usually mean flimsy frames that flex under their own weight. The 138 series uses that profile depth to support massive glass panels while keeping sightlines narrow. The profile width is 1.535 inches, which is slim enough to disappear visually but deep enough to hold laminated impact glass rated for Miami wind loads.

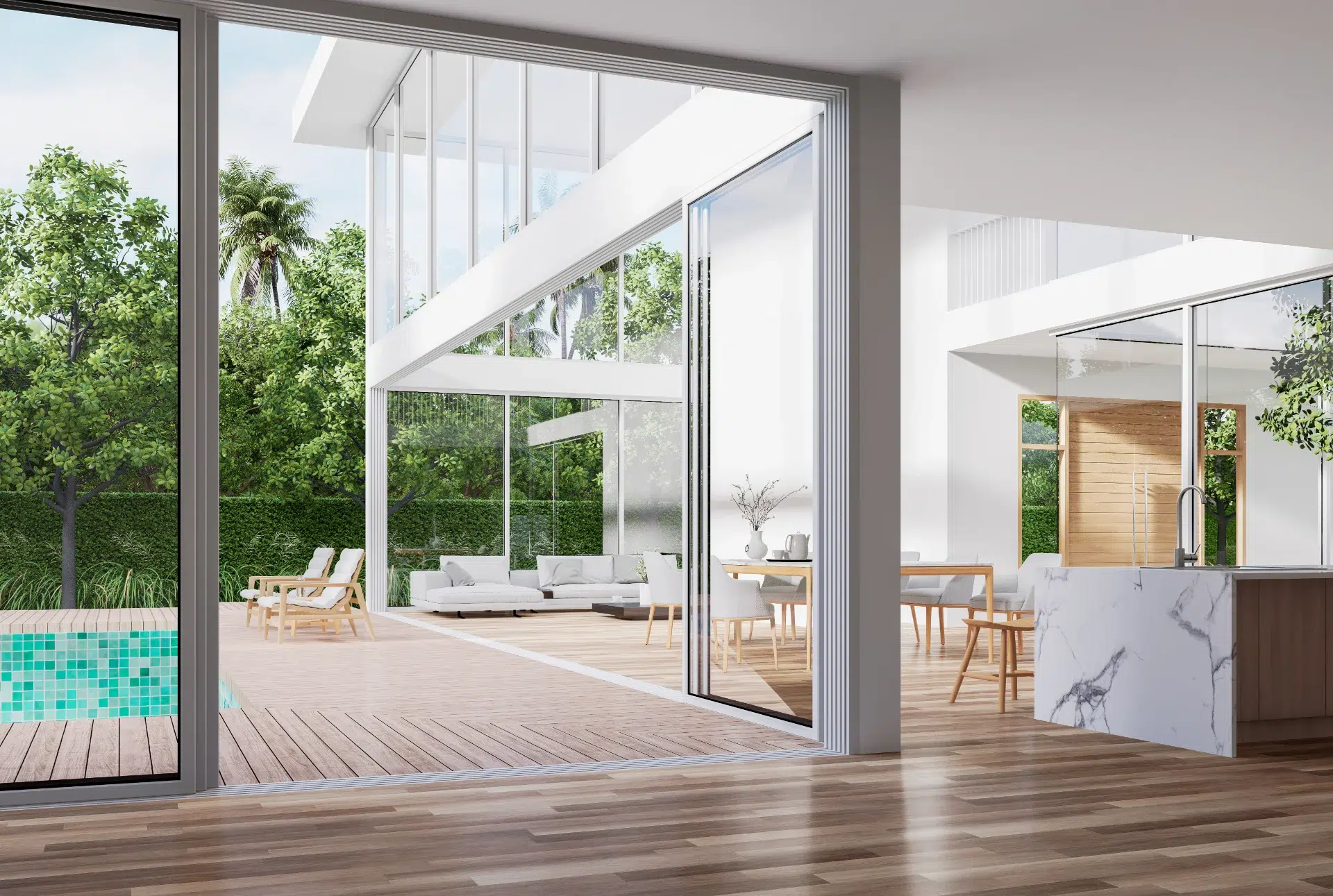

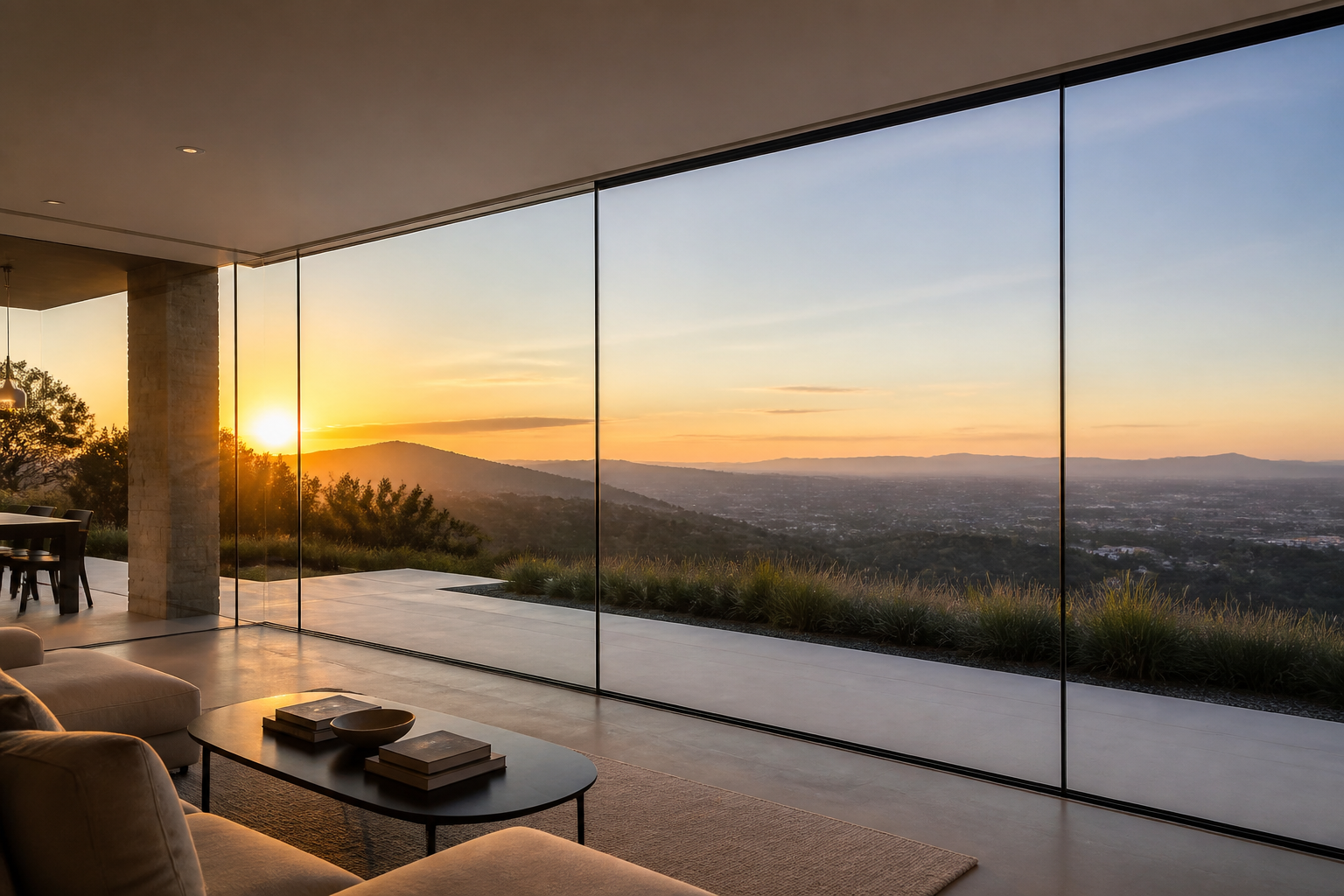

This is the door you spec when the view is the point. Ocean-facing condos in Brickell. Canal-front homes in Coral Gables. Courtyard pool entrances in Pinecrest. The VLX 138 Panoramic Sliding Door doesn’t compete with the view, it frames it. The track system is available in 2-track, 3-track, and 4-track configurations, which means you can have two, three, or four panels stacking to one side. Maximum span reaches 36 feet wide. That’s a full wall of glass that opens.

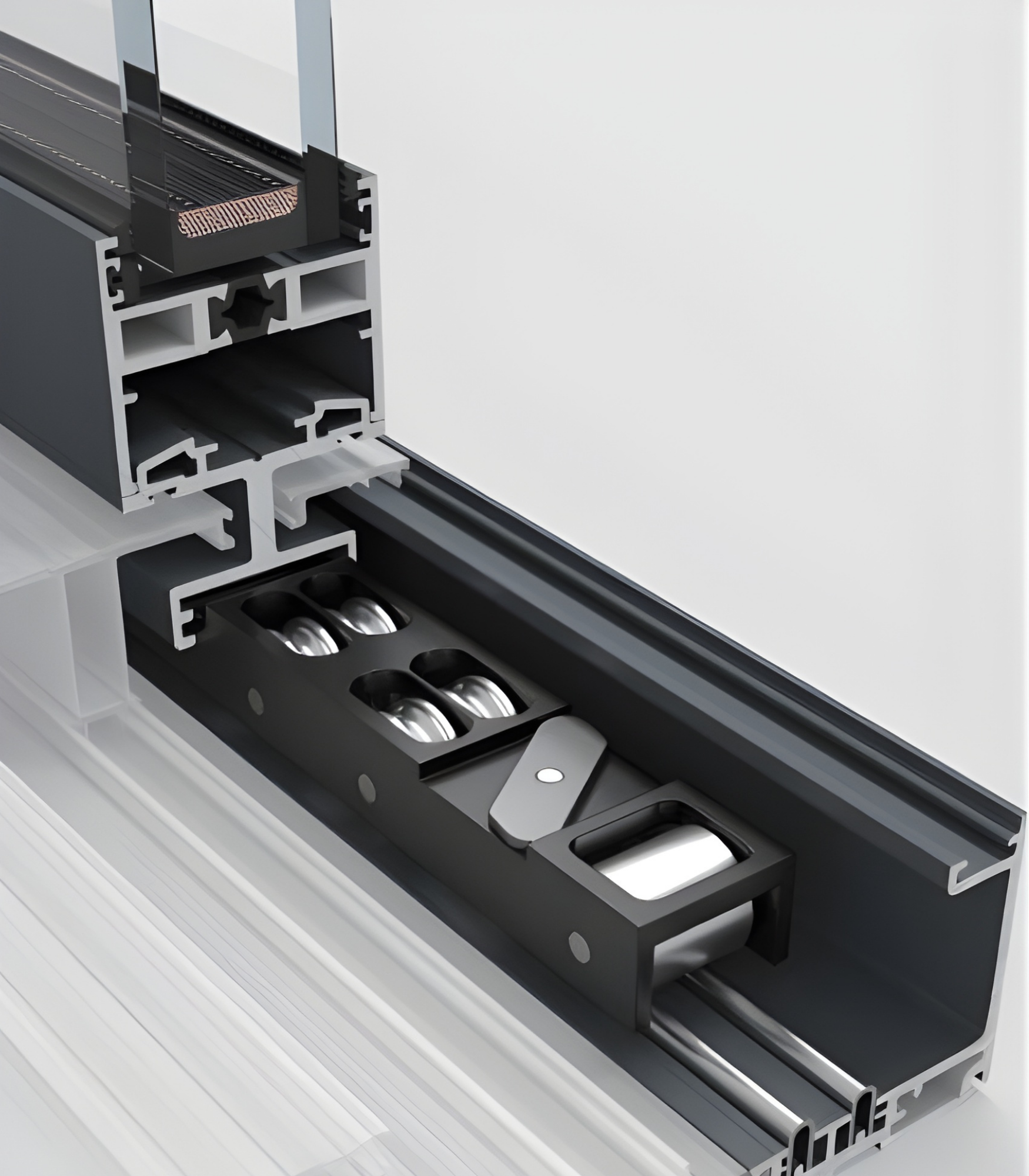

What separates this series from standard aluminum sliders is the glide. Panels ride on stainless steel bearings inside the track, not plastic rollers that grind and bind after a few years of Miami humidity. There’s no jerky start, no sag at the end of the track. You push with two fingers and the panel moves. That’s the engineering difference, and it’s the reason we recommend this series for high-end residential projects where the door gets opened daily, not just on special occasions.
Technical Specifications

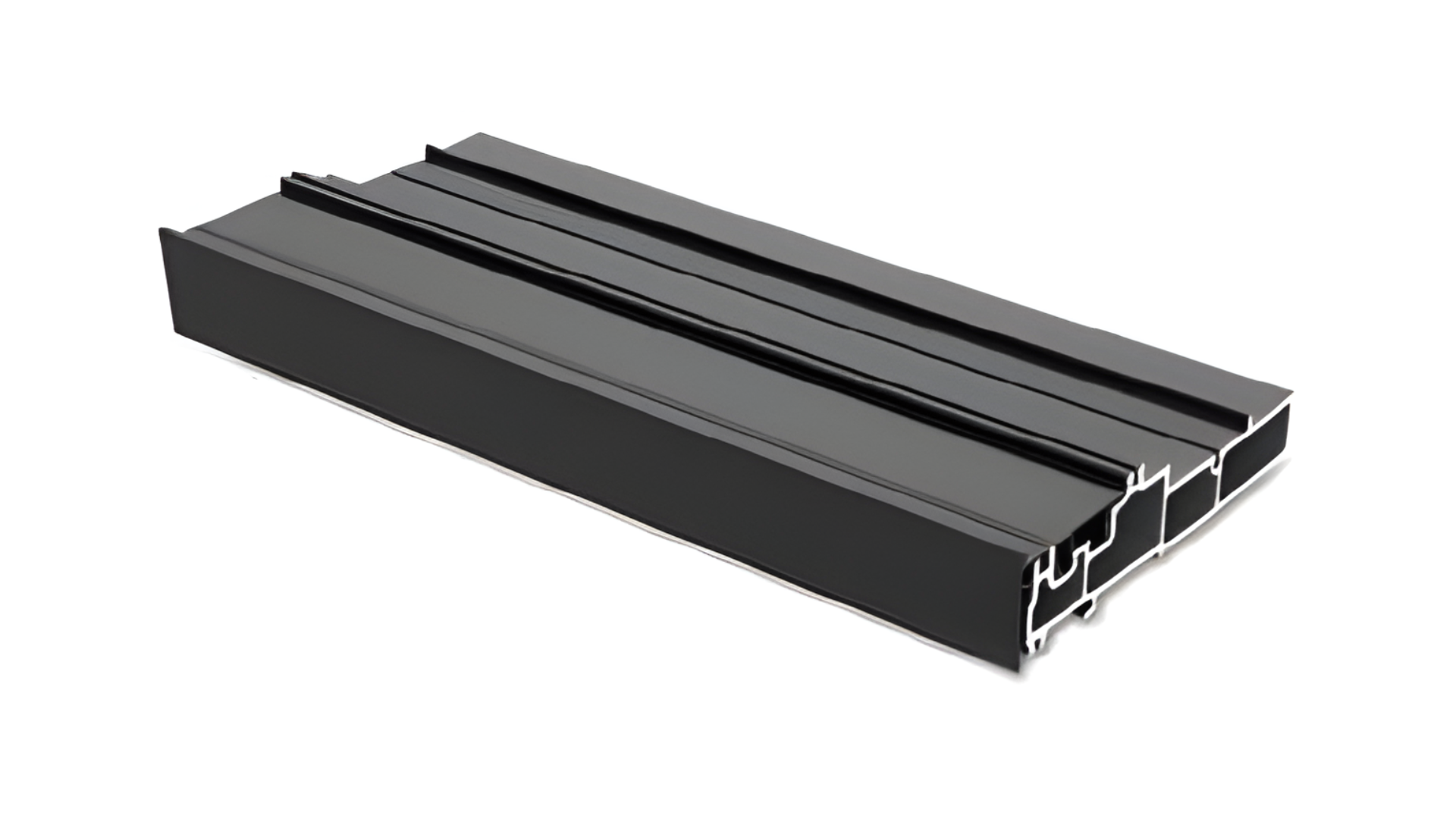

- Wall thickness: 0.138″ extruded aluminum, engineered for wide spans without deflection
- Profile width: 1.535″, narrow sightlines with structural depth for impact-rated glass
- Maximum span: Up to 36 feet wide, depending on panel count and glass weight
- Track configurations: 2-Track, 3-Track, 4-Track for stacking panels to one or both sides
- Glass options: Clear, Low-E, Frosted, Obscure, Black Tint, Gray Tint, plus impact-resistant laminated glass
- Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
- Screen options: Retractable Screen, Sliding Screen
- Sill options: Flush Sill (indoor-outdoor transition), Low-Profile Sill, Recessed Sill (fully set into the floor)
- Performance: Thermal break technology, NFRC-rated energy performance, AAMA 2400/2410 installation compliance
Performance Features
Thermal Efficiency

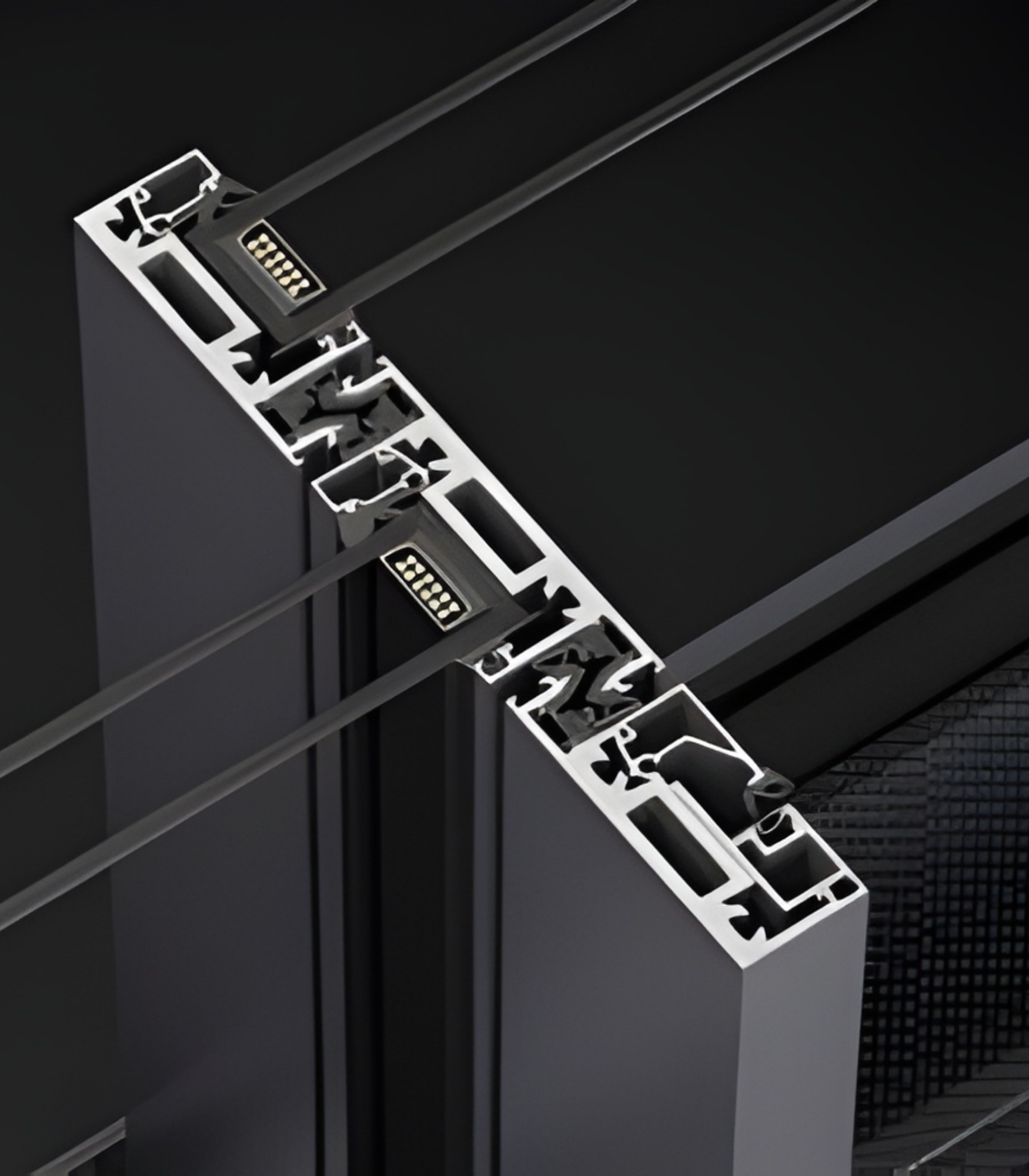

Thermal break technology separates the interior and exterior aluminum faces with a non-conductive barrier. That stops Miami heat from conducting straight through the frame. NFRC-rated performance means you get real numbers on U-factor and solar heat gain, not marketing claims. Low-E glass paired with the thermal break keeps air-conditioned air inside and mid-August heat outside.
Acoustic Performance
Miami is loud. Traffic on US-1, jets approaching MIA, construction on the next lot. The VLX 138’s frame tolerances and glass options work together to cut exterior noise. Laminated impact glass also dampens sound better than standard annealed glass. If you’re near a noise source, we’ll spec thicker laminated glass and you’ll notice the difference the day it’s installed.
Airtightness & Weather Seal
Every perimeter joint gets AAMA 812 low-expansion foam sealant, not caulk from a tube at the hardware store. AAMA 812 foam expands to fill the full depth of the rough opening, creating an airtight barrier between the frame and the structure. The result is no draft around the edges, no hot air infiltration in summer, and no mold growth inside the wall cavity from humid Miami air finding its way in.
Waterproofing

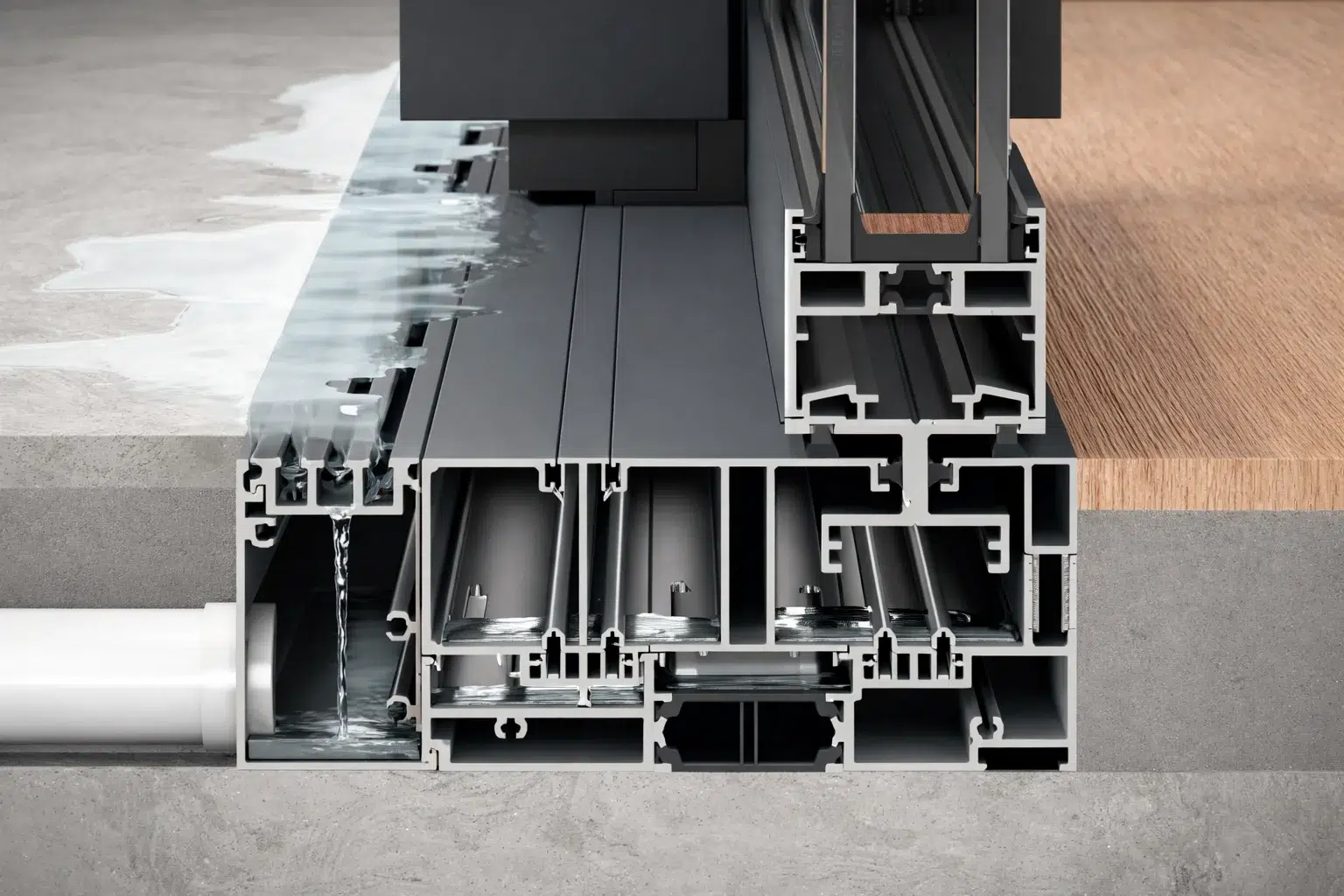

Water intrusion is the biggest risk with any sliding door in South Florida. We install the VLX 138 with a layered water management system: sill flashing, perimeter sealant, and proper drainage paths at the base. The sill options matter here. A recessed sill sits flush with the floor and needs correct drainage below, while a low-profile sill gives you a raised barrier. We’ll match the sill to your exposure and Florida Building Code requirements.
Wind Resistance
Doors installed in Miami must be wind-load rated for the specific zone of the home. The VLX 138 frame depth of 0.138″ combined with impact-resistant laminated glass meets the structural demands of Miami-Dade and Broward wind zones when spec’d correctly. We verify glass type, frame reinforcement, and anchoring for your exact location before ordering. No shortcuts on a 36-foot opening facing the water.
Security & Hardware

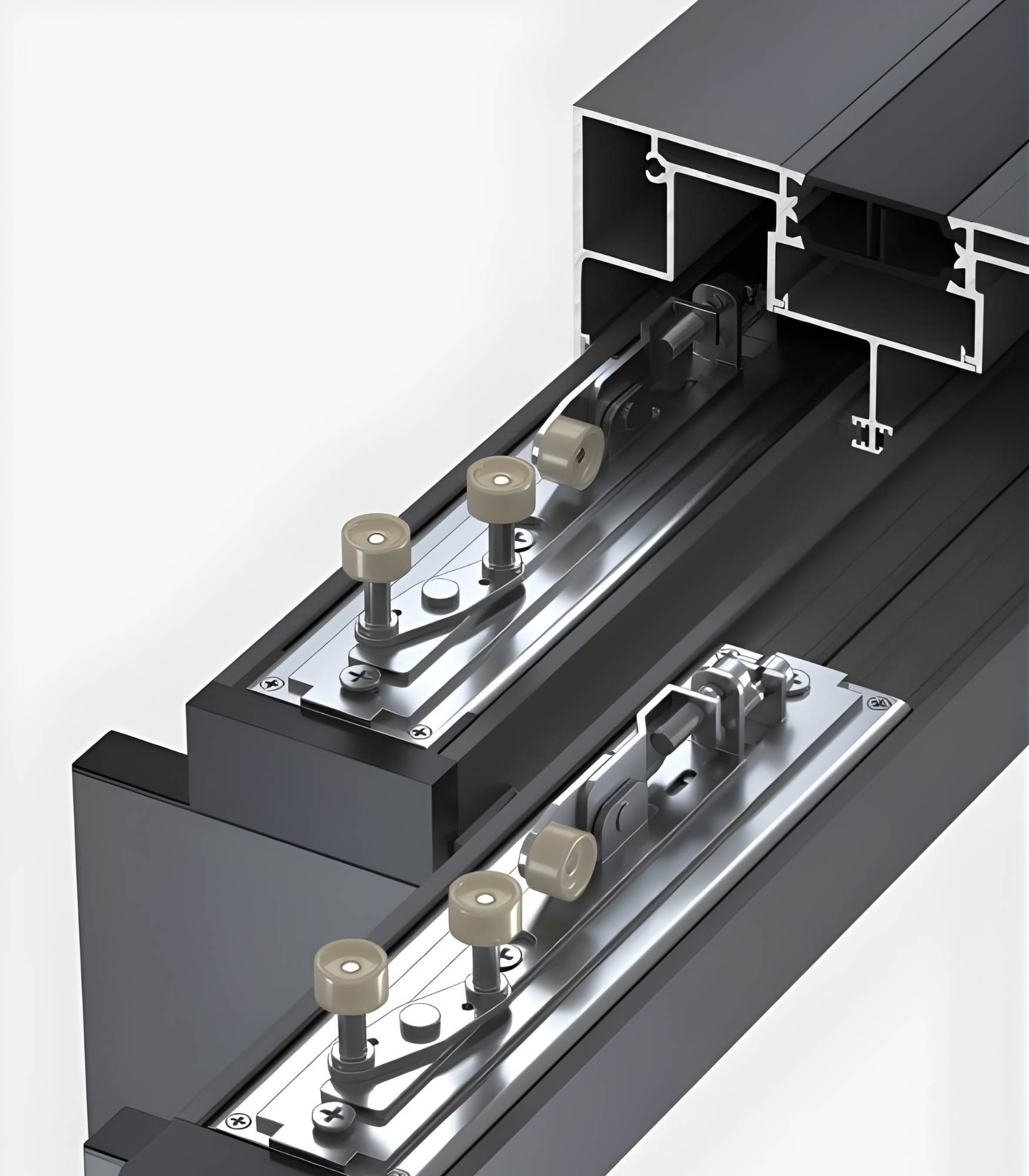

Multi-point locking engages at the top, bottom, and center of the panel, not just a single latch. The stainless bearing system inside the track resists prying and lifting better than standard roller carriages. For ground-floor Miami installations, we can add tamper-resistant screws and reinforced strike plates. The door looks elegant, but it’s built to hold.
Color & Glass Options
Six finish options cover nearly every architectural style in Miami. Premium Black suits modern concrete-and-glass homes in Edgewater and the Design District. Pure White fits coastal contemporary and Key West-inspired architecture. Anodized Silver pairs naturally with stainless appliances and cool gray interiors. Bronze brings warmth to Mediterranean-style homes in Coral Gables. Champagne works as a subtle metallic accent on transitional designs. Teak Wood delivers a wood-look finish without the maintenance of real timber in Miami’s humidity.
Glass choice drives both aesthetics and energy performance. Clear glass maximizes the view but lets in the most solar heat. Low-E reflects infrared while staying visually transparent, which matters if your door faces west. Frosted glass offers privacy without blocking all the light, good for bathroom-adjacent patios. Obscure glass adds texture. Black Tint and Gray Tint cut glare and heat gain while giving the exterior a sleek, uniform look. For coastal Miami and hurricane-prone areas, impact-resistant laminated glass is the serious choice: two glass layers bonded with an interlayer that holds shards together if something hits it.
Installation by TruePane Windows & Doors in Miami
A sliding door that spans 20 or 30 feet only performs as well as its installation. We’ve taken calls from homeowners in Kendall and Coconut Grove whose “bargain” door installation sagged within a year because the frame wasn’t shimmed level and the track wasn’t anchored on plane. That’s not a manufacturer defect. It’s an installation failure, and the warranty doesn’t cover it.
Our process starts before the door is ordered. We measure the rough opening in three dimensions, check for settlement in the slab, and verify the header can carry the span. Miami homes built on limestone or fill can shift over time, and a 36-foot opening amplifies that movement. If the rough opening is out of square, we address it before the aluminum ever shows up.
On install day, we set the frame level, plumb, and square using laser levels, not a bubble level from a drawer. We shim every anchor point, secure the frame with structural fasteners rated for the wind zone, and fill the full perimeter joint with AAMA 812 low-expansion foam. Every installation follows AAMA 2400/2410 standards, which cover everything from anchoring to flashing to sealant application. After the panels are set and adjusted, we run a water test on the sill and perimeter, then walk the door with you to confirm the glide, the lock engagement, and the screen operation. When we leave, the site is cleaned and the old door is hauled away.
Miami building code is part of every install we do. Permits are pulled, inspections are scheduled, and the final product is documented for insurance and warranty purposes. Improper installation voids the manufacturer warranty on this door, and in a city with Miami’s climate and code requirements, professional installation is the only way to protect your purchase.
Frequently Asked Questions - VLX 138 Panoramic Sliding Door
Lead time for the VLX 138 typically runs 4 to 8 weeks from order confirmation, depending on glass type, finish color, and panel configuration. Custom sizes and impact-rated laminated glass add time. We’ll give you a written timeline when we quote your project. Call (754) 238-2201 to start a measurement and get an exact delivery window.
Possibly. The VLX 138 with Low-E glass and thermal break technology carries NFRC ratings that can qualify for federal energy tax credits and local utility rebates. Qualification depends on the specific glass package and your home’s location. We’ll provide the NFRC documentation with your quote so you can check eligibility. Call (754) 238-2201 for details on your project.
The VLX 138 carries a manufacturer warranty from and as an authorized installation partner, TruePane Windows & Doors preserves that warranty by installing to factory specifications and AAMA 2400/2410 standards. We also stand behind our workmanship with our own installation warranty. Call (754) 238-2201 and we’ll walk you through exactly what’s covered.
Yes. The VLX 138 is built to order, not pulled from stock. Panel widths, heights, and overall span up to 36 feet are sized to your opening. Track configuration, sill type, screen option, glass, and finish are all selectable. We measure to the exact opening and order from that. Call (754) 238-2201 to schedule a free on-site measurement in Miami.
Aluminum frames in Miami need a quarterly rinse with clean water to remove salt and sand from the track and frame faces, especially if you’re near Biscayne Bay or the ocean. Clean the stainless bearing track with a dry cloth and a light silicone spray on the track only, never on the glass. Check drain holes in the sill stay clear. That’s the whole routine. No painting, no sealing, no rust prevention.
Get a Quote - VLX 138 Panoramic Sliding Door in Miami
If the VLX 138 Panoramic Sliding Door sounds like your opening, let’s get real numbers. Call TruePane Windows & Doors at (754) 238-2201 to schedule a free on-site measurement and consultation. We’ll spec the door for your exact opening, provide a written line-item quote with glass and finish options, and walk you through the installation timeline. Serving all of Miami, FL and surrounding areas.
Written by the team at TruePane Windows & Doors, authorized ViewLux installation partner, serving Miami, FL.
