AfterPicture & Fixed Windows in Miami, FL | TruePane Windows & Doors

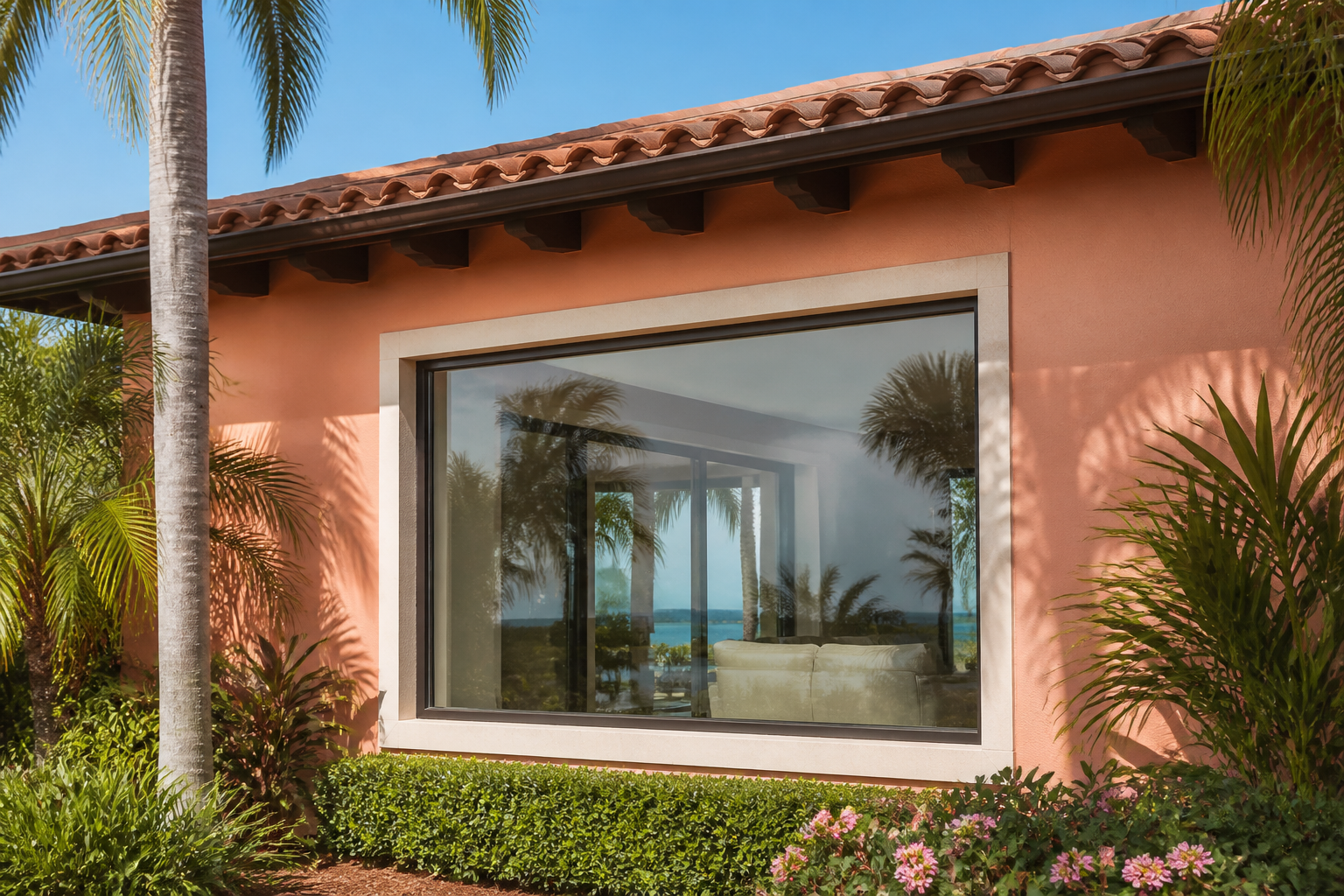

Picture and fixed windows give you the clearest glass area a Miami home can have. No sashes, no tracks, no hardware interrupting the sightline. Just laminated impact glass set into a clean frame that’s engineered for Florida wind loads. They’re the workhorse of oceanfront living rooms, second-story gables, and any wall where you want the view to do the talking. TruePane Windows & Doors installs these across our PGT, CGI, CWS, ES Windows, ECO, and Mr-Glass lines, and we’ve fitted them in homes from Coconut Grove to Aventura. Call (754) 238-2201 to talk about your project.
Product Overview - Picture & Fixed Windows
A picture window is a non-operable unit: it doesn’t open, slide, or tilt. What it does is hold a large, uninterrupted pane of laminated impact glass in place while a hurricane tries to knock it out. In Miami, that’s the point. We see these installed three ways: as a single statement window over a sofa or staircase landing, as a wide center panel flanked by operable casements or single-hungs, or in a ribbon of fixed glass across the back of a house that faces the water.
The frame is available in aluminum or vinyl, and the glass carries a PVB interlayer that keeps the pane intact under impact. That’s the same laminated construction you’ll find in every TruePane hurricane product in Miami, but here it’s doing double duty: protection and visibility. Because the unit never moves, the frame can be slimmer and the glass larger than on an operable window. Architects in South Florida lean on picture windows to pull in light without introducing a hinge or a crank into a modern elevation. We build them up to 120 inches wide, which covers most residential openings without needing a mullion.
Technical Specifications
- Frame materials: Aluminum or vinyl, selected by exposure and building style
- Maximum width: Up to 120 inches per unit, configuration dependent
- Glass options: Laminated impact glass with PVB interlayer, Low-E insulated glass, tinted glass, clear glass
- Finish colors: White, almond, bronze, black, tan
- Operation: Non-operable (fixed)
- Compliance: Miami-Dade NOA and Florida Product Approval numbers available per configuration
Every picture window we quote for a Miami project starts with the specific opening dimensions and the house’s wind zone. The design pressure rating gets matched to that location, never overstated, never undersold. We’ll show you the exact NOA and Florida Product Approval numbers for your configuration on the written quote before you sign anything.
Hurricane & Compliance Performance
Laminated Impact Glass - The glass is built with a PVB interlayer that holds the pane in the frame under impact. Even when the outer lite cracks, the laminate keeps the envelope sealed so wind and rain stay outside where they belong. This is not a film or a storm panel. It’s the glass itself doing the work.
Miami-Dade NOA / Florida Product Approval - Each configuration carries a Miami-Dade Notice of Acceptance and a Florida Product Approval number. They’re issued per configuration, so we verify the specific numbers on your quote. If your jurisdiction or permit office wants documentation, we supply it.
FBC / HVHZ Compliance - The units are engineered to Florida Building Code High-Velocity Hurricane Zone requirements. HVHZ is the strictest wind standard in the state, and Miami sits fully inside that zone. You can’t legally install a non-compliant impact window here, and we don’t sell one.
TAS 201 / 202 / 203 Testing Context - HVHZ-rated products are tested under a specific protocol family: TAS 201 for large-missile impact, TAS 202 for cyclic wind-pressure loading, and TAS 203 for forced-entry resistance. These three tests simulate what a Category-strength storm actually does to a window over hours, not minutes.
Design Pressure for Your Wind Zone - Design pressures are matched to your wind zone, up to +/-100, never higher. A window rated above what the site requires isn’t safer; it’s just over-spec. We calculate the exact number for your elevation and opening size and put it on the paperwork.
Energy Performance Options - Low-E and insulated glass options are available for picture windows in Miami where sun exposure is aggressive. Tinted glass is another route we use on west-facing walls in neighborhoods like Kendall and Doral, where afternoon heat loading is constant.
Color & Glass Options
Color matters more in Miami than most people expect. White and almond still lead in the Mediterranean-style homes you see across Coral Gables and Pinecrest, where stucco walls and clay tile roofs favor light frames. Bronze and black have taken over the modern elevations in Edgewater and Wynwood, and they hold up well against salt air when you choose a quality finish. Tan sits in the middle and works nicely on the softer earth tones common in Westchester and the Hammocks.
Glass choice follows the sun. Clear laminated impact glass is the default for shaded exposures and north walls. Low-E insulated glass is what we suggest for big east- and west-facing picture windows in Miami, where heat comes through the glass even when the storm isn’t blowing. Tinted glass cuts glare without changing the architectural look of the house, and we often pair a tinted fixed panel with clear operable units on either side so the room doesn’t go dark.
Installation by TruePane Windows & Doors in Miami
We start every picture window install in Miami with a pre-install inspection of the rough opening. If the existing frame or buck is rotted, racked, or out of square, we address it before the new unit goes in. A Miami home near the bay can hide a surprising amount of water damage behind an old window, and you don’t want a new impact-rated unit screwed into framing that’s already failed.
Installation follows AAMA 2400/2410 practice. That means the opening gets flashed, the unit gets set level, plumb, and square, and the perimeter gets sealed with AAMA 812 low-expansion foam. Then we run a water test on the installation and walk you through cleanup. Every opening we touch in Miami-Dade County sits in an HVHZ jurisdiction with its own permit paperwork, so we flag which window configurations need NOA submittals before your contractor or we pull the permit. An impact window is only as good as the installation around it. A rated panel set badly will still leak, and the NOA doesn’t follow the window, it follows the installation. That’s why we train our crews on this product specifically, not just windows generally.
Frequently Asked Questions - Picture & Fixed Windows
The design pressure is matched to your specific wind zone in Miami, up to +/-100, never higher. We calculate the exact number from your address, opening size, and exposure category, then put it on your quote.
Lead time depends on the manufacturer and your glass configuration, but most picture windows for Miami projects land in the standard production window for the line you choose. We’ll confirm a delivery date on your quote once the size and glass are locked in.
Yes, for most residential replacements in Miami-Dade County the permit reviewer wants the NOA and Florida Product Approval numbers for the exact configuration being installed. We supply the documentation with your quote so your permit package moves forward cleanly.
You can size the unit up to 120 inches wide and pair it with operable windows on either side, above, or below. The glass type, finish color, and frame material are all selectable. We quote each opening individually because design pressure requirements change with size.
Wash the glass with mild soap and water, and wipe the frame with a damp cloth. Keep the weep holes clear and don’t pressure-wash the glass or frame at close range, especially in coastal neighborhoods where salt collects and can etch a finish over time. Call (754) 238-2201 if you ever spot a seal failure or a crack in the laminate.
Get a Quote - Picture & Fixed Windows in Miami
We’ll measure your openings, confirm the wind zone and design pressure, and price the exact configuration you want, with the NOA numbers in hand for your permit. Call (754) 238-2201 to schedule a free on-site measurement with TruePane Windows & Doors in Miami.
Written by the team at TruePane Windows & Doors, serving Miami, FL.
