VLX 100 Swing / Entry Door

VLX 100 Swing / Entry Door in Miami, FL | TruePane Windows & Doors

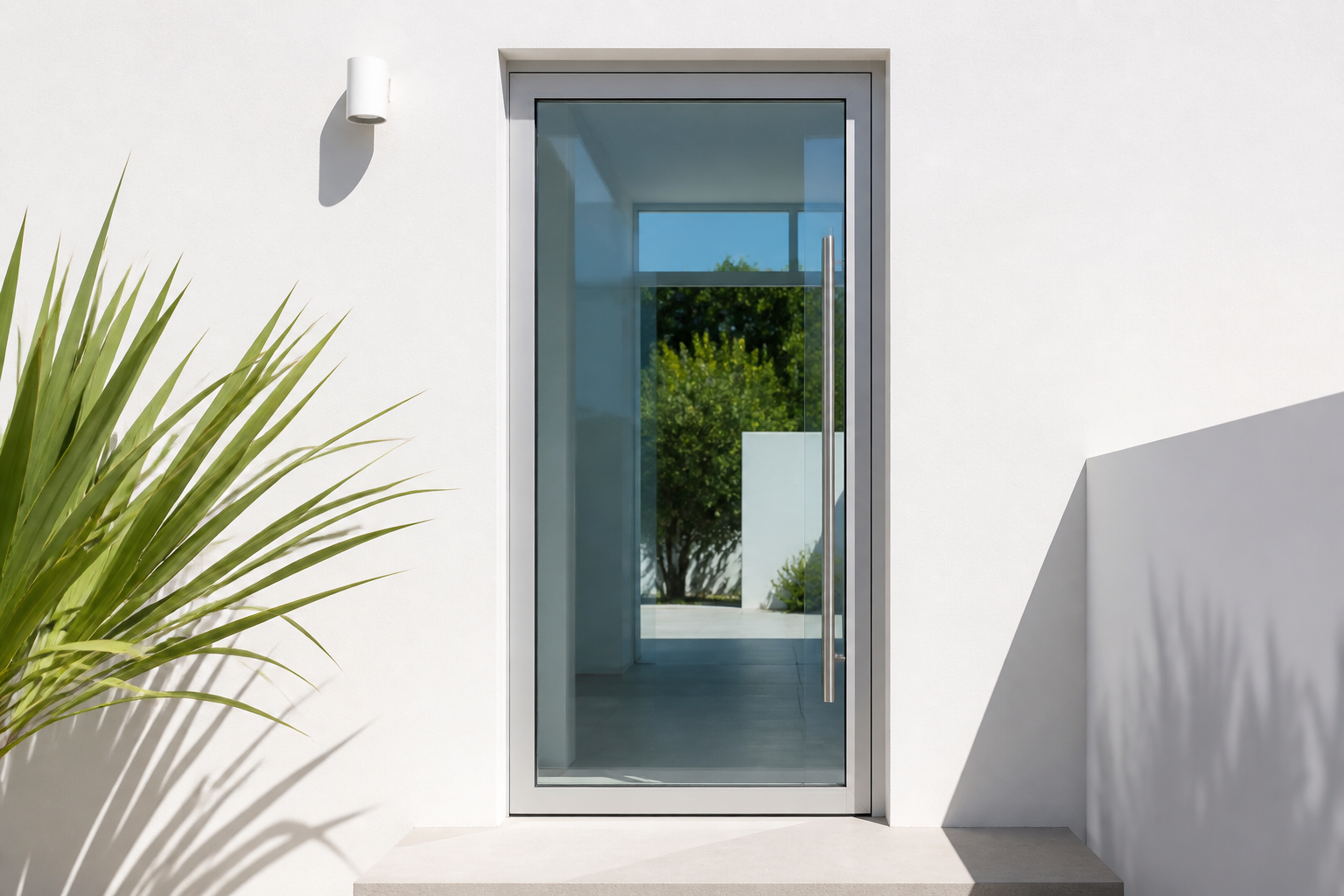

The VLX 100 Swing / Entry Door is a single-panel aluminum entry door with a deliberately slim 2.56-inch profile. Homeowners in Miami choose it when they want a clean, modern front door that won’t warp, swell, or fight the humidity the way wood doors do. TruePane Windows & Doors is an authorized ViewLux installation partner, which means you get the full manufacturer warranty honored, not questioned. We sell the door, we install it, and we stand behind the finished opening. If you’re pricing a new entry door in Miami, call (754) 238-2201 and we’ll give you a real number, not a vague range. Free on-site measurements across Miami-Dade.

Call (754) 238-2201

Product Overview - VLX 100 Swing / Entry Door

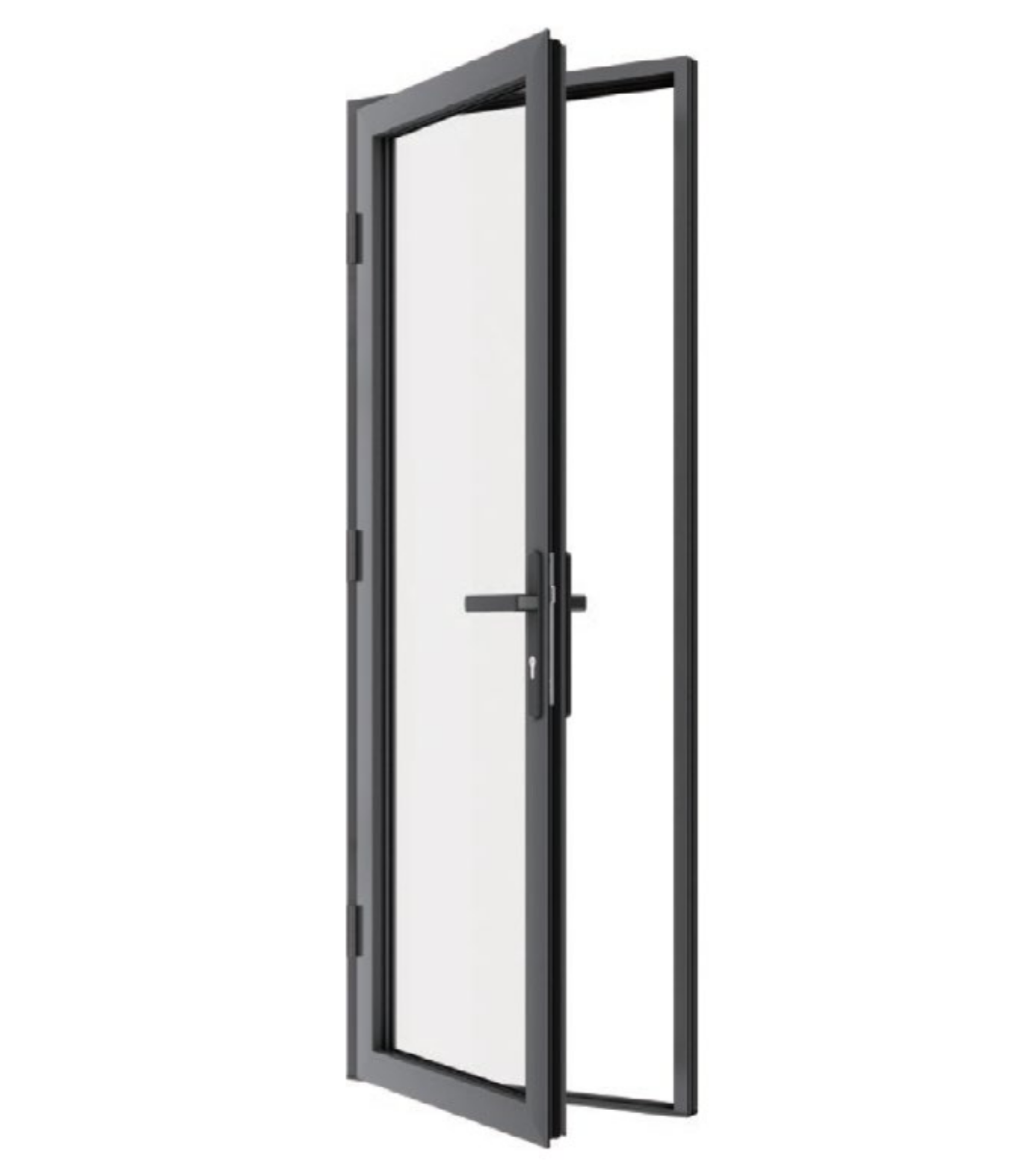

The VLX 100 is built around a simple idea: an entry door should feel substantial when it closes and disappear when it’s open. The frame profile measures 2.56 inches, which is narrow enough to keep sightlines open but deep enough to carry a multi-point locking system. The door is a single swing panel, hinged conventionally, with an aluminum body that resists the salt air and moisture Miami throws at it year-round.

Architecturally, this series fits homes that lean modern or minimalist. Think Coral Gables renovations, mid-century restorations in Coconut Grove, new builds in Edgewater, or townhomes in Doral where a heavy wood door would look out of place. We’ve installed the VLX 100 on everything from 1950s ranch homes in Westchester to glass-heavy contemporary homes on the bay in North Bay Village.

Why buyers land on this model over a traditional steel or fiberglass door: it won’t rust, it won’t absorb water, and the frame tolerances stay tight over a decade of coastal exposure. The aluminum extrusion has a wall thickness of 0.098 inches, which gives the door its rigidity without making it feel industrial. Multi-point locking comes standard, engaging at multiple points along the frame rather than a single deadbolt. For Miami homeowners, that’s a meaningful security upgrade over what most builders put in.

Technical Specifications

Here’s the VLX 100 Swing / Entry Door broken down by the numbers and options that matter when you’re comparing products:

• Frame profile width: 2.56 inches, designed for a minimalist reveal around the door slab
• Aluminum wall thickness: 0.098 inches, giving the extrusion its structural stiffness
• Maximum panel span: up to 48 inches wide, which works for most standard single entry openings in Miami homes
• Glass options: Clear, Frosted, Obscure, Low-E, Tempered, Laminated
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Screen options: Retractable Screen or None
• Locking: Multi-point locking hardware, engaging at multiple points along the frame
• Thermal performance: Thermally broken frame, NFRC-rated for energy performance
• Weather sealing: Airtightness and waterproofing rated; installed per AAMA 2400/2410 with AAMA 812 low-expansion foam at all perimeter joints
• Wind rating: Rated for Miami-Dade wind load requirements; laminated impact glass available where code demands it

Performance Features

Thermal Efficiency - The VLX 100 uses a thermal break inside the aluminum frame, which separates the interior and exterior metal so heat doesn’t transfer straight through. In Miami, that means your air conditioning stays inside and the afternoon sun stays out. NFRC-rated energy performance means you can compare this door’s numbers against any other product on the market.

Acoustic Performance - Aluminum doors are not naturally quiet. This one is. The frame design, combined with laminated glass when selected, cuts outside noise noticeably. If you live near US-1, the Palmetto Expressway, or under the flight path to MIA, the sound control ratings on the VLX 100 will matter more than you think.

Airtightness & Weather Seal - The door seals against the frame with compression gaskets that hold their shape in Miami’s heat. No gaps at the threshold, no draft at the head. Airtightness ratings on this series are tested, not theoretical, and the seal holds year after year because aluminum doesn’t flex with humidity changes.

Waterproofing - Miami gets sideways rain in the summer. The VLX 100’s sill design and frame drainage direct water away from the interior before it becomes a problem. Combined with AAMA 812 low-expansion foam sealant applied at every perimeter joint during installation, the opening resists water intrusion even in tropical storm conditions.

Wind Resistance - This door is wind-load rated for Miami-Dade requirements, which are the strictest in the country. The 0.098-inch wall thickness and multi-point locking give the panel the strength to stay rigid under pressure. If your home is in a high-velocity hurricane zone, the laminated glass option brings the whole assembly up to impact-resistance standards.

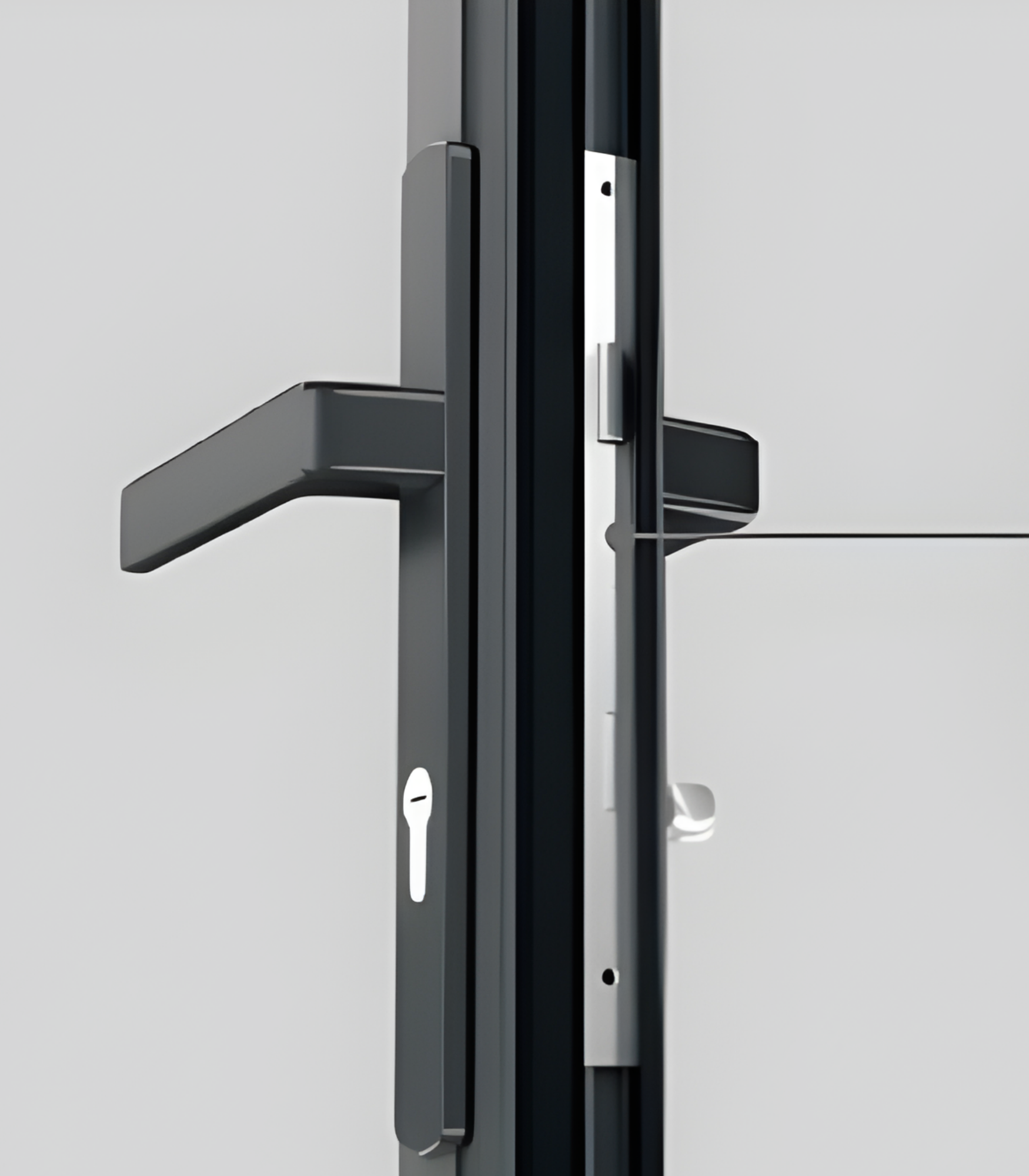

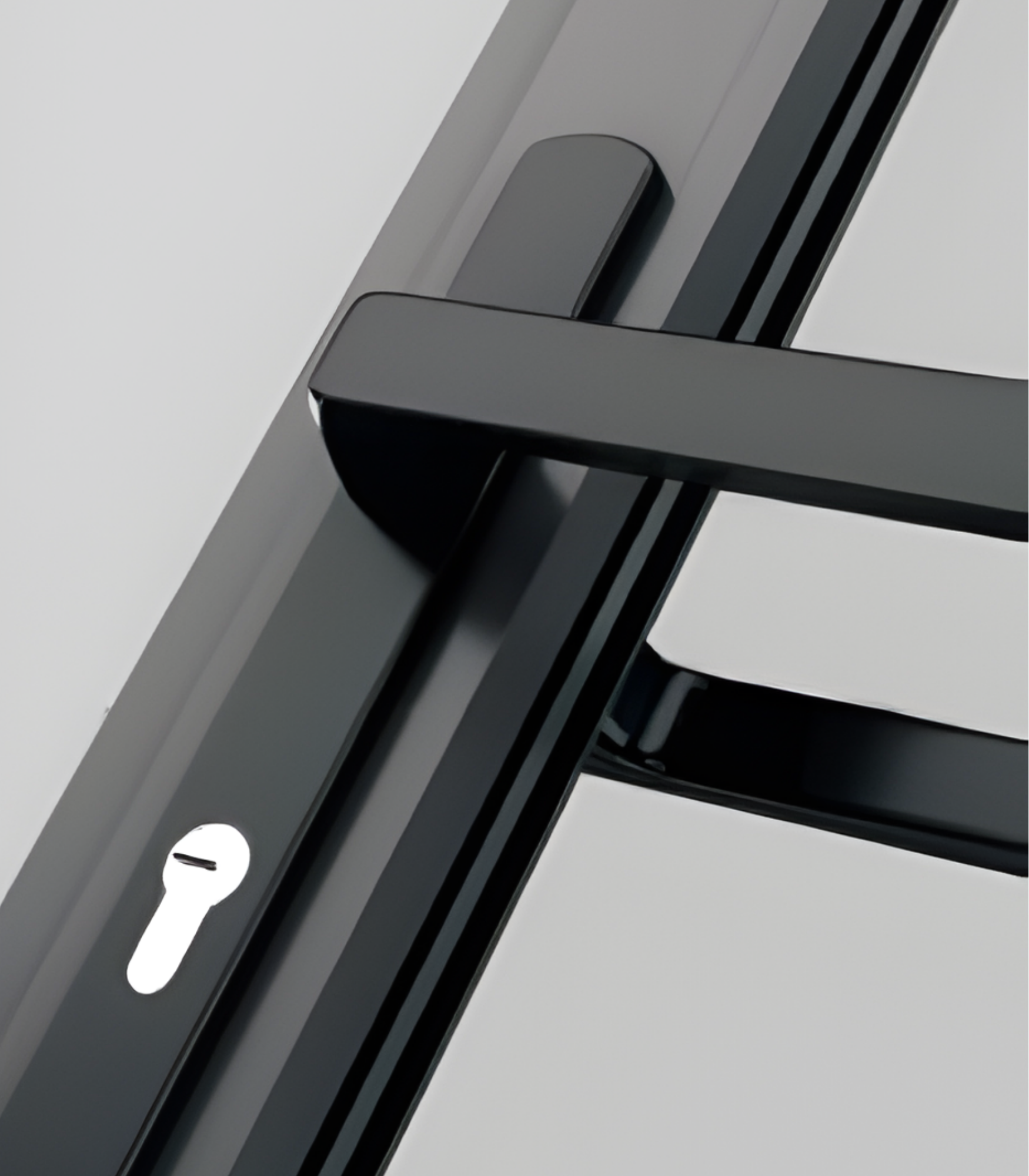

Security & Hardware - The multi-point locking system is the headline here. Instead of a single deadbolt, the VLX 100 engages locking points at multiple locations along the frame when you lift or turn the handle. That spreads force across the door and makes forced entry significantly harder than with a standard single-point lock.

Color & Glass Options

The VLX 100 comes in six finishes. Premium Black is the most requested color in Miami right now, especially on white stucco homes or modern builds in Wynwood and the Design District. Pure White reads crisp and coastal, a natural fit for Key Biscayne condos or traditional Mediterranean-style homes in Coral Gables. Anodized Silver is the industrial choice, honest aluminum with no paint to scratch. Bronze works beautifully on warmer stucco tones and homes with earth-tone palettes. Champagne is the unexpected option, softer than silver and more distinctive than white. Teak Wood gives you the look of a wood door without the maintenance, ideal for buyers who want warmth at the entry without worrying about rot in Miami’s wet season.

On the glass side, Clear maximizes light and visibility. Frosted and Obscure give you privacy while still letting daylight through, good for entries that face a street or neighbor directly. Low-E blocks heat gain while staying visually clear. Tempered is safety glass that shatters into small pieces rather than sharp shards. Laminated is the impact-rated option, required in some Miami-Dade applications and the right call for any opening that faces the storm direction.

Installation by TruePane Windows & Doors in Miami

Any door is only as good as its installation. We’ve seen perfectly good products fail because a contractor set the frame out of square, skipped the perimeter seal, or used the wrong fasteners. A bad install doesn’t just leak. It voids the manufacturer warranty, and no door company will cover a product that was installed wrong.

TruePane Windows & Doors installs the VLX 100 to AAMA 2400/2410 standards, which is the recognized benchmark for window and door installation in the U.S. Our process starts with a pre-install inspection of the rough opening. We check the opening dimensions, verify the substrate is sound, and identify any water intrusion issues from the old door before we touch anything.

Then we set the frame level, plumb, and square. No shims sticking out, no bowed jambs. We use AAMA 812 low-expansion foam sealant on every perimeter joint, which seals the opening against air and water without distorting the frame as it cures. After the panel is hung and the hardware installed, we run a water test around the perimeter to confirm the seals are doing their job. The last step is a full cleanup; we haul off the old door and leave the opening ready to use.

Miami brings specific challenges. Salt air near the coast accelerates corrosion on cheap hardware. High humidity tests every seal. Miami-Dade wind load requirements mean the anchoring and flashing details have to be done correctly, not just look correct. Our crew works in these conditions every week across the county, from Little Havana to Aventura, and we know what holds up and what doesn’t.

Frequently Asked Questions - VLX 100 Swing / Entry Door

What is the lead time for the VLX 100 Swing / Entry Door? Most VLX 100 orders arrive in 4 to 6 weeks from the date we confirm the final measurements and options. Custom glass selections or less common finishes can add a week or two. Call (754) 238-2201 and we’ll give you a current lead time estimate for your specific configuration.

Does the VLX 100 qualify for energy tax credits? Possibly. The VLX 100 is NFRC-rated for energy performance, which is the rating body that matters for federal energy efficiency incentives. Eligibility depends on the specific glass package you select and current program requirements. We can pull the NFRC numbers for your configuration so you can check with your tax preparer. Call us at (754) 238-2201 and we’ll walk you through it.

What warranty comes with the VLX 100 Swing / Entry Door? The manufacturer warranty covers the door frame, panel, and finish against defects in materials and workmanship. The specific coverage terms depend on the finish and glass selections. Our installation workmanship carries its own warranty from TruePane Windows & Doors, and because we’re an authorized ViewLux partner, the manufacturer warranty stays intact. Call (754) 238-2201 for the exact coverage details on your build.

Can I customize the size of the VLX 100? Yes, within limits. The panel spans up to 48 inches wide, which covers most single entry doors in Miami homes. If your opening is larger than that, we’ll talk through your options, whether that’s a custom configuration or a different door system. We measure every opening before ordering so the door fits the actual rough opening, not what the plans said it should be.

How do I maintain aluminum frames in Miami? Aluminum frames need almost nothing. Clean the frame and track a few times a year with mild soap and water to remove salt residue and dirt. Lubricate the hinges and multi-point lock mechanism annually with a silicone-based lubricant. Check the weatherstripping every couple of years and replace it if it’s compressed or torn. That’s the whole routine. No sanding, no painting, no rust treatment, no wood filler.

Get a Quote - VLX 100 Swing / Entry Door in Miami

If you’re ready to price the VLX 100 for your home, let’s get you a real number. We’ll measure your opening, review your glass and finish options, and give you a written line-item quote, no pressure and no vague ballpark figures. Call (754) 238-2201 to schedule your free on-site measurement anywhere in Miami-Dade County.

Written by the team at TruePane Windows & Doors, authorized ViewLux installation partner serving Miami, FL.
